lexicon

For optimum service and to avoid misunderstandings, let’s use the same vocabulary.

Crosspiece

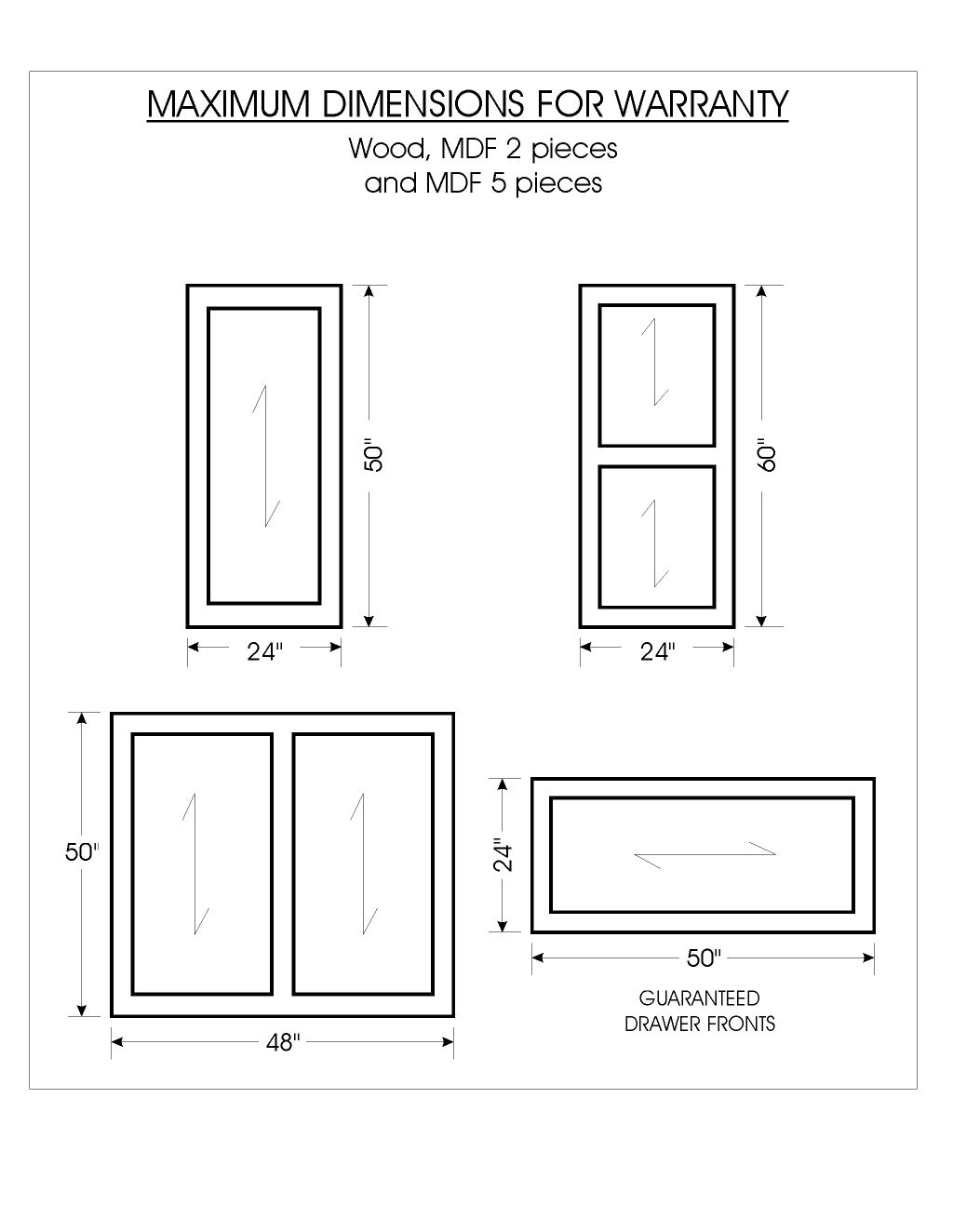

Vertical *when the door exceeds 24“ wide

  • Tv : the customer can choose where to insert it (with drawing)
  • Tvc : the crosspiece is inserted in the middle of the door.

Horizontal *when the door exceeds 50“ high

  • Th: the customer can choose where to insert it (with drawing)
  • Thc:  the crosspiece is inserted in the middle of the door.

Model 830 (louver)

  • standard stiles & rails 2“3/8
  • The height of the door needs to be rounded up to even inches
  • No matter the width
  • Rails width can vary depending on the height requested.  (ex: 20”1/2 high door, the rails will be 2“5/8 wide)

Translation

Frames

  • Camc= cadre avec moulure de caoutchouc * with rubber moulding
  • Cacd= cadre a carreau défoncé * with lites
  • Cag=cadre a goujons * dowel

Grooved Panel

  • Max 36“ haut  *maximum height 36“
  • Max 24“ large *maximum width 24“

Others

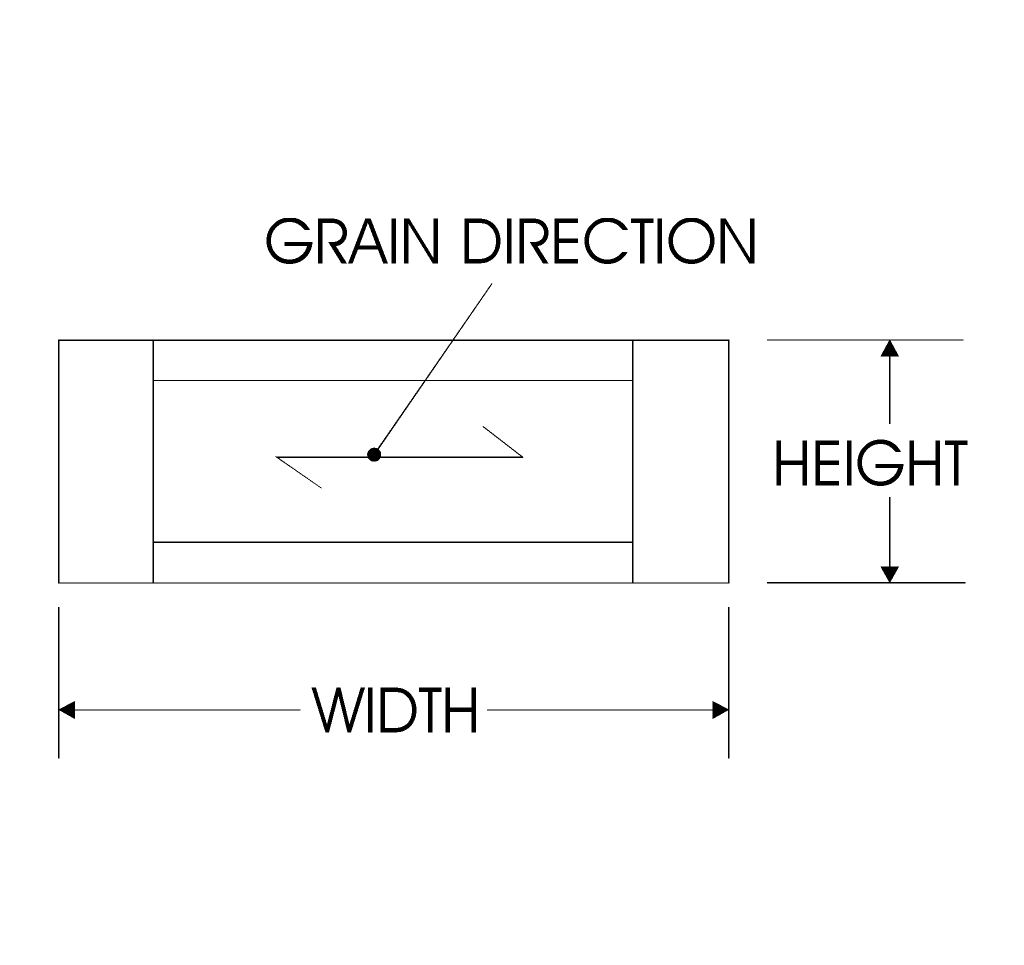

  • Façades unies * slab drawer
  • Facades cadrées * 5 piece drawer front
  • Cadre * frame
  • Cadres a carreaux * frame with lites
  • Porte tenon mortaise *tongue & groove door
  • Facade tenon mortaise * tongue & groove drawer front
  • Porte 45° * mitered door
  • Facade 45° * mitered drawer front

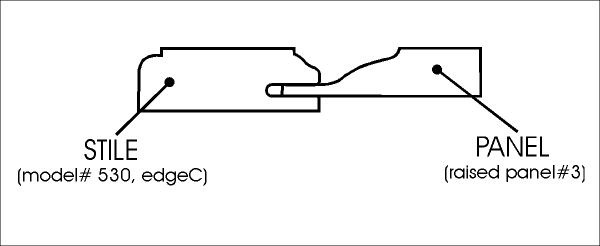

  • Montant * stiles
  • Travers * rails
  • Cadrage ou battant * frame

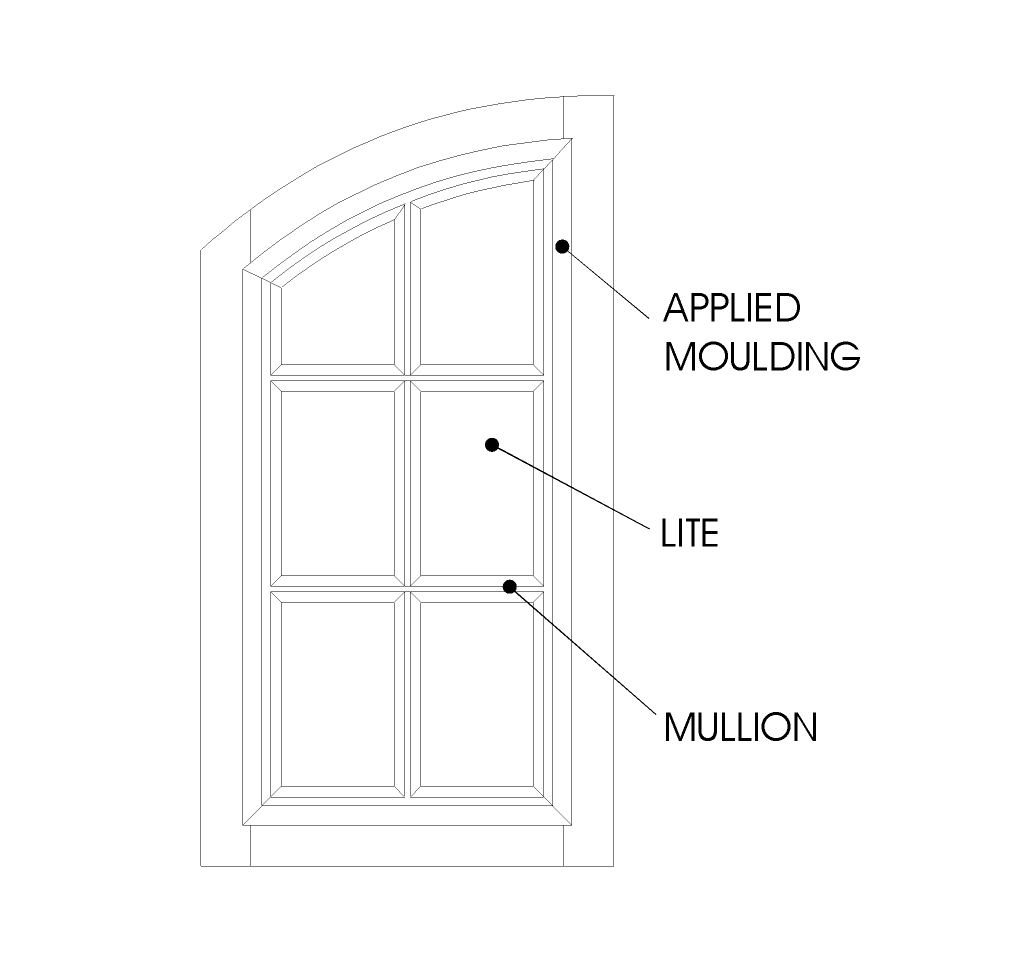

  • Carreaux * lites
  • Carrelage * mullions
  • Panneau ou profil * panel or profile
  • Bookmatch * la symétrie du panneau
  • Corbeau * corbels

Notes

No changes made once quote is signed…
If changes are requested, there is a 50$ fee.
